DECATUR INDUSTRIES INC.

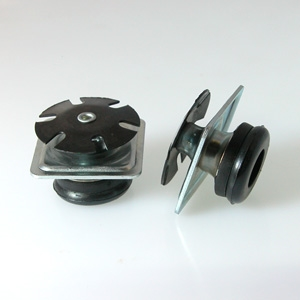

ARG-260P
Spring Threaded Tube Connector>Swivel Glide Insert Nut > ARG-260P
ARG-260P
ARG-260S
For Square Tube

1-Tier
Tube Size
Tube Inner Size
ARG-170
3/4”
0.620” - 0.672”
15.7 - 17.1mm
ARG-200
7/8”
0.745” - 0.797”
18.9 - 20.2mm
ARG-230
1”
0.870” - 0.922”
22.1 - 23.4mm
ARG-260
1-1/8”
0.995” - 1.047”
25.3 - 26.6mm
ARG-295
1-1/4”
1.120” - 1.172”
28.4 - 29.8mm

Glide Bottom : 24mm Dia. for Plastic /
                        27mm Dia. for Plastic with Steel Cover.
2ARG-295
Spring Threaded Tube Connector>Swivel Glide Insert Nut > 2ARG-295
2ARG-295
2ARG-200
2ARG-170
For Square Tube

2-Tier
Tube Size
Tube Inner Size
2ARG-170
3/4”
0.620” - 0.672”
15.7 - 17.1mm
2ARG-200
7/8”
0.745” - 0.797”
18.9 - 20.2mm
2ARG-230
1”
0.870” - 0.922”
22.1 - 23.4mm
2ARG-260
1-1/8”
0.995” - 1.047”
25.3 - 26.6mm
2ARG-295
1-1/4”
1.120” - 1.172”
28.4 - 29.8mm

With steel cover glide bottom only.

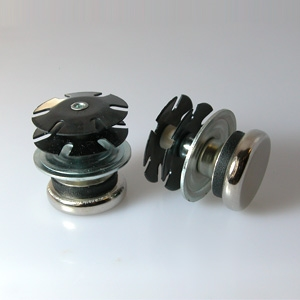

BRG-230P
Spring Threaded Tube Connector>Swivel Glide Insert Nut > BRG-230P
BRG-230P
BRG-230S
BRG-200S
For Round Tube

1-Tier
Tube O.D..
Tube Inner Diameter
BRG-170
3/4”
0.620” - 0.672”
15.7 - 17.1mm
BRG-200
7/8”
0.745” - 0.797”
18.9 - 20.2mm
BRG-230
1”
0.870” - 0.922”
22.1 - 23.4mm
BRG-260
1-1/8”
0.995” - 1.047”
25.3 - 26.6mm
BRG-295
1-1/4”
1.120” - 1.172”
28.4 - 29.8mm

Glide Bottom : 24mm Dia. for Plastic /
                        27mm Dia. for Plastic with Steel Cover.
2BRG-260S
Spring Threaded Tube Connector>Swivel Glide Insert Nut > 2BRG-260S

2-Tier

Tube O.D.
Tube Inner Diameter
2BRG-170
3/4”
0.620” - 0.672”
15.7 - 17.1mm
2BRG-200
7/8”
0.745” - 0.797”
18.9 - 20.2mm
2BRG-230
1”
0.870” - 0.922”
22.1 - 23.4mm
2BRG-260
1-1/8”
0.995” - 1.047”
25.3 - 26.6mm
2BRG-295
1-1/4”
1.120” - 1.172”
28.4 - 29.8mm

With steel cover glide bottom only.
