Drawer Slide>Ball Bearing Slide > C1213
Material : | Ball Bearing Slide (Side Mounted) |
Length Available | 12”~24”L. |
Groove Width | 36mm W. |
Function : | Full Extension Self Closing Soft Closing Silent |
Material | Steel |
Finish | Zinc Plated Black Painted |
Loading Capacity | 25kgs |
Drawer Slide>Ball Bearing Slide > C769
Item No. | C769W for Wood Drawer C769S for Steel Drawer |
Material : | Steel Box Drawer Slide |
Groove Width : | 45.7mm |
Specification : | Full Extension |
Length Available : | 10”/ 12”/ 14”/ 16”/ 18”/ 20”/ 22”/ 24”/ 26” / 28” |
Finishes : | Zinc Plated |
Loading Capacity : | 35kgs |
Drawer Slide>Ball Bearing Slide > C770
Item No : | C770 W/O Rib / C770-R W/Rib |
Material : | Steel Ball Bearing Drawer Slide |
Groove Width : | 36mm Width, |
Specification : | Full Extension / Detent-in only |
Length Available : | 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600mm |
Finishes : | Z.P / Black Epoxy |
Loading Capacity : | 35kgs |
Hole System : | 32mm System Screw Pattern |
 |
| C770 |
 |
| C770 |
Drawer Slide>Ball Bearing Slide > C771
Item No : | C771 W/O Rib / C771-R W/Rib |
Product Name : | Steel Ball Bearing Drawer Slide |
Groove Width : | 27mm |
Specification : | One-way travel / With stainless steel clip |
Length Available : | 300 / 350 / 376 / 400 / 450 / 500mm |
Finishes : | Zinc Plated |
Loading Capacity : | 18kgs |
.gif)
.gif)
.gif)
Drawer Slide>Ball Bearing Slide > C771-86
Item No : | C771-86 W/O Rib / C771-86R W/Rib |
Material : | Steel Ball Bearing Drawer Slide |
Groove Width : | 27mm |
Specification : | One-way travel / W/ Plastic Clip / Detent-in only |
Length Available: | 250 / 300 / 350 / 400 / 450 / 500mm |
Finish : | Zinc Plated |
Loading Capacity : | 18kgs |
C771-86
C771-86
C771-86R
C771-86R
Drawer Slide>Ball Bearing Slide > C771-90
Item No : | C771-90 W/O Rib / C771-90R W/Rib |
Material : | Steel Ball Bearing Drawer Slide |
Length available : | 250 / 300 / 350 / 40 0 / 450 / 500mm |
Groove Width : | 27mm |
Specification : | One-Way Travel / With plastic clip |
Finish : | Zinc Plated |
Loading capacity : | 18kgs |
Used for : | Holding the computer key board |
.jpg)
C771-90
.jpg)
C771-90
C771-90R
C771-90R
Drawer Slide>Ball Bearing Slide > C772
Material : | Steel Ball Bearing Mini Drawer Slide |
Groove Width : | 17mm |
Length Available : | 182 / 214 / 246 / 278 / 310 / 342 / 374 / 406 / 438mm |
Finishes : | Galvanized Steel / Black Epoxy |
Loading Capacity : | 10kgs |
.gif) |
| C772 |
.gif) |
| C772 |
Drawer Slide>Ball Bearing Slide > C1214
Material : | Ball Bearing Slide (Side Mounted) |
Length Available | 12”~ 24”L. |
Groove Width | 46mm W. |
Function : | Full Extension Soft Closing Silent |
Material | Steel |
Finish | Zinc Plated Black Painted |
Loading Capacity | 35kgs |

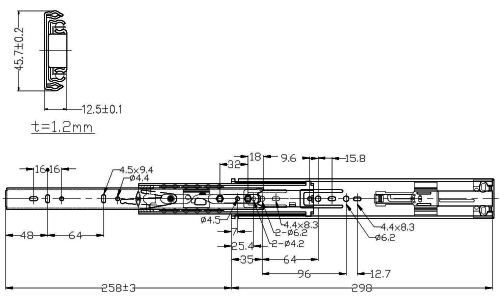

C1214-12"
.jpg)
C1214-14" L.
.jpg)
C1214 16~24" L
.jpg)
.jpg)
Drawer Slide>Ball Bearing Slide > C1221
Material : | Ball Bearing Slide (Bottom Mounted) |
Length Available | 10”~ 24”L. |
Groove Width | 36mm W. |
Function : | Full Extension Detent –In |
Material | Steel |
Finish | Zinc Plated Black Painted |
Loading Capacity | 35kgs |
Drawer Slide>Ball Bearing Slide > C1222
Material : | Ball Bearing Slide (Side Mounted) |
Length Available | 14”~ 24”L. |
Groove Width | 36mm W. |
Function : | Full Extension Self Closing |
Material | Steel |
Finish | Zinc Plated Black Painted |
Loading Capacity | 30kgs |
Drawer Slide>Ball Bearing Slide > C1223
Material : | Ball Bearing Slide (Side Mounted) |
Length Available | 14”~ 28”L. |
Groove Width | 43mm W. |
Function : | Full Extension Detent – In |
Material | Steel |
Finish | Zinc Plated Black Painted |
Loading Capacity | 41kgs |
Drawer Slide>Ball Bearing Slide > C1224
Material : | Ball Bearing Slide (Side Mounted) |
Length Available | 10”~ 30”L. |
Groove Width | 46mm W. |
Function : | Full Extension |
Material | Steel |
Finish | Zinc Plated Black Painted |
Loading Capacity | 41kgs |
Drawer Slide>Ball Bearing Slide > C1225
Material : | Ball Bearing Slide (Side Mounted) |
Length Available | 10”~ 30”L. |
Groove Width | 46mm W. |
Function : | Full Extension |
Material | Steel |
Finish | Zinc Plated Black Painted |
Loading Capacity | 35kgs |
.jpg)
.jpg)
